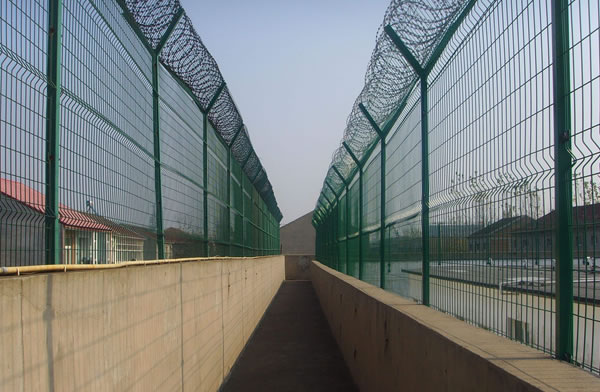

358 Prison Mesh Barrier + Y Post + Razor Wire High Security Fence

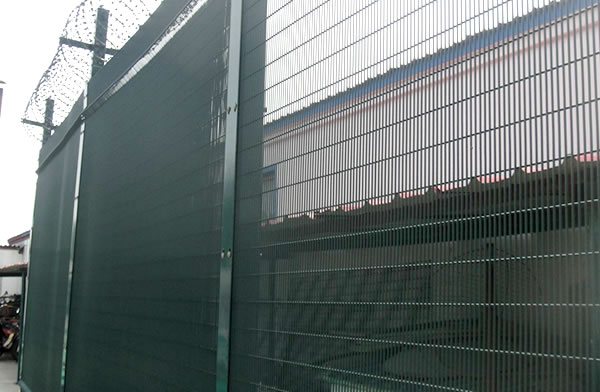

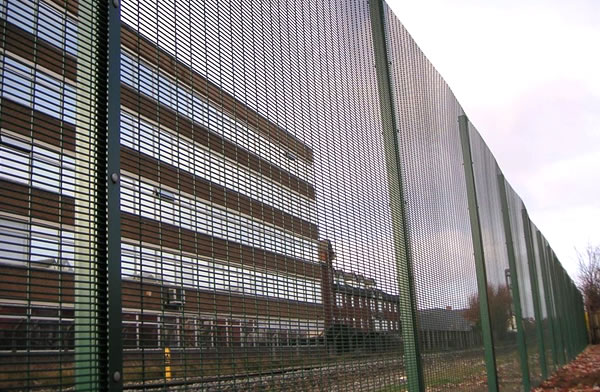

High Security Fence System of Framed 358 Fence Panels + Posts

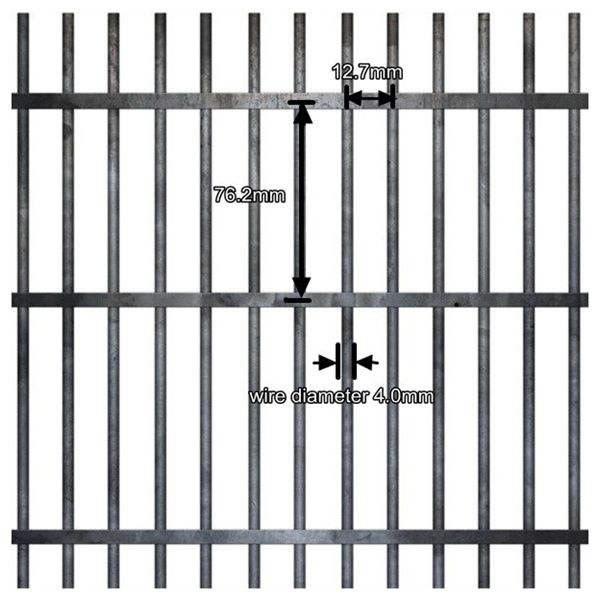

"358" comes from its measurements 3" x 0.5" x 8 gauges which equates to approx. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) in metric.

358 mesh fence is also called 358 mesh, high security fence, prison mesh, anti-climb fence or anti-cut fence. It is wildly used for the places requiring high security protection, such as prison, military zone and other places where security control is necessory.

Galvanized Carbon Steel Welded Mesh

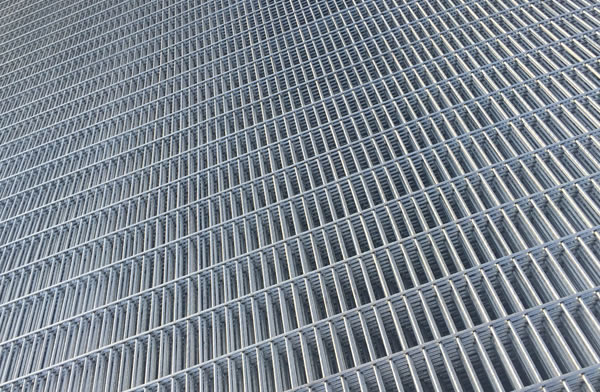

Welded Mesh Panels

Height x Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: Electro galvanized iron wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment: Galvanized pipe or PVC coated
Flat Bar: 60x5x2000mm
Surface Treatment: Iron flat bar PVC coated
With Plastic cap and bolts and nuts

358 and 3510 Style:

1. 76.2mm x 12.7mm x 4mm (Length x height x Diameter) -- 3″×0.5″×8# -- 358 fence
2. 76.2mm×12.7mm × 3.2mm (Length x height x Diameter) -- 3″×0.5″×10# -- 3510 fence

BWG 8 Gauge Specifications

Wire diameter BWG8 (4mm)
Mesh size  3" x 0.5" (76.2mm x 12.7mm )
Height  1.8m, 2m, 2.4m, 2.7m, 3m, 3.5m, 4m, 5m, etc
Width  2m, 2.2m, 2.5m etc
Surface treatment  Electro galvanized, Hot-dipped galvanized, Powder coated, PVC coated
Color  Green ( Standard RAL 6005), White, Grey, Blue, etc

Fencing Construction

Classification

358 mesh see-through fencing system
Anti climb 358 perimeter security fencing
Galvanized Reinforced Welded Wire Mesh Fence Panel
Easily Assembled Galvanized wire mesh security fence prison mesh

Surface Treatment

  • Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
  • Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
  • Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
  • Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
  • Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)

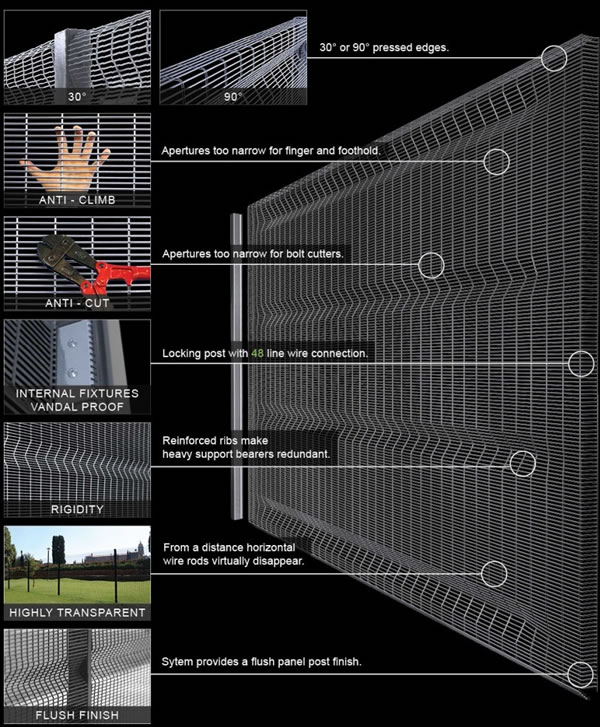

Features

  • Easy installation: Major parts of the high security fence system are the weld mesh panel, the post and the flat bar, the clamps. First stand the post in the regular distance, then stand the fence panel by the post, and ensure the panel between the flat bar and the post. Then fix the fence panel, post and flat bar with the clamps and bolts.
  • High Security: 358 mesh fencing is famous of its high security function. The small mesh (76.2mm*12.7mm) is difficult enough for human finger or cutter go though. Hence, it also known as anti-climb fence and anti-cut fence.
  • Anti-Climb: The mesh size of 358 mesh fence is 76.2mm*12.7mm which is too small for human's finger to go though.
  • Anti-Cut: Cutting the wire of 358 mesh fence is also a problem for the people trying to go through. The normal scissors can go through the mesh but it is not powerful enough for cutting the wire off. If a more powerful cutting tool is applied, then the cutter will be too big to go through the mesh. Normal tools can not cut the wire off.

Application

  • Airports
  • Perimeter
  • Prison and military
  • Warehousing
  • Industrial Units

76.2mm x 12.7mm x 4mm (Length x height x Diameter) -- 3″×0.5″×8# -- 358 fenceGalvanized and PVC Coated Anti-Climbing Fence Panel

High Secure Prison Mesh PanelsWelded Panels, Anti Cut, of Hot Dip Galvanized Iron Rectangular Mesh

Anti climb 358 security fence meshPVC Coated Steel Mesh Fencing with Concertina Razor Wire Coils Security Top

Green Powder Coated Perimeter FenceHigh Green Prison Mesh Fencing Panels with Fence Gate, Powder Coated Galv.

Garden Anti-climb Fence1.8m high Square Tube Framed Mesh Panel Security Fencing

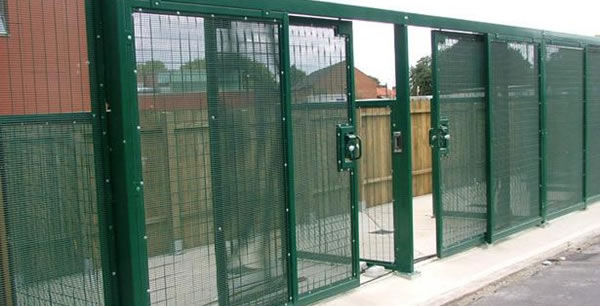

High Security Welded Mesh Doors
