Galvanized Steel Picket Fence for Perimeter Security

Galvanized Steel Ornamental Picket Fence: Rails, Pickets and Posts

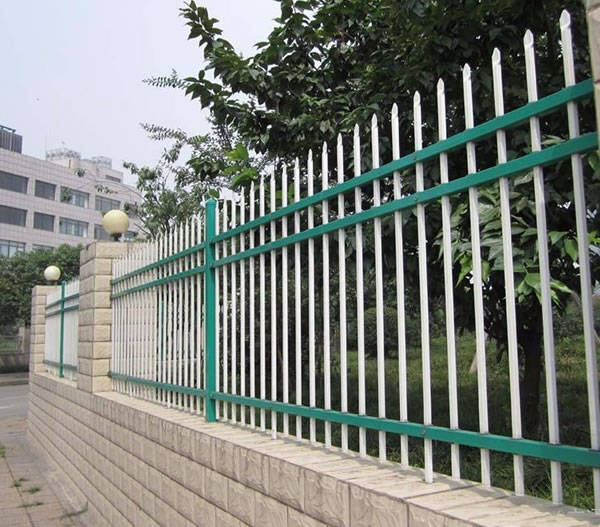

Galvanized Steel Picket Fence can be zinc galvanized picket fence or powder coated steel fence. The panels are manufactured with strong steel pickets and rails available in a wide range of sizes and styles. Steel Tube / Bar Panels are attached with high-strength steel or aluminum brackets to galvanised square tubular steel or aluminum posts. The Spear top design of this tubular fence creates an aesthetically pleasing fence which at the same time deters intruders. This security level ornamental fence is suitable for gardens, residential, industrial and commercial properties, schools, pools and boundary fencing.

Tubular Steel Security FencePressed Spear Top Tubular Steel Ornamental Fence

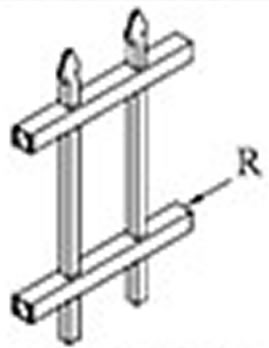

The common size:
(1) Horizontal rail: 32x32x1.2mm(thick.)
(2) Vertical rail: 16x16x1.0mm(thick.)
(3) Spacing:13cm

Australia Standard Welded Tubular Steel Picket Fencing

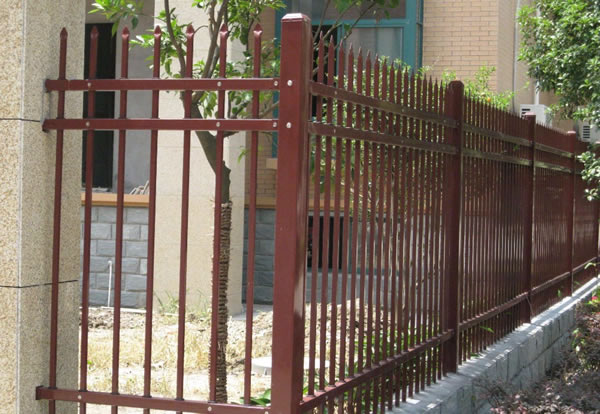

Spear-top picket fences with pressed spears top on the tubular posts
provide the classic outlook, bringing an aesthetically pleasing visual appeal to the residences. Spear-top picket fence railing has decorative rings. Scrolls can be added for an even more ornamental look.

Material: Steel tube, or galvanized steel tube.

Surface: Hot dipped galvanized, Powder coated.

Color: Any RAL colors are available.

Application: Residential and villa fencing; also security of business and industry area, factories and workshops, public buildings, parks, roads.

Major Fencing System Types:

Fence Panel Types Height Width Rail Size Picket Post Size Post Length Flange Option
900 1800
2000
2400
32*32*1.0
32*32*1.2
16*16*0.8
16*16*1.0
50*50*1.2
60*60*1.5
1200 120*120*4.0
150*150*5.0
1200 1500
1500 1900
1800 2300
1500 2400
2750
3000
40*40*1.2
40*40*1.5
19*19*1.0
19*19*1.2
50*50*1.5
60*60*2.0
1900 120*120*4.0
150*150*5.0
1800 2300
2100 25*25*1.2
25*25*1.5
2700
2400 3000
1800 2400
2750
3000
50*50*2.0
50*50*2.5
25*25*1.5
25*25*2.0
60*60*2.0
80*80*3.0
2300 150*150*5.0
200*200*6.0
2100 2700
2400 3000
2700 3500

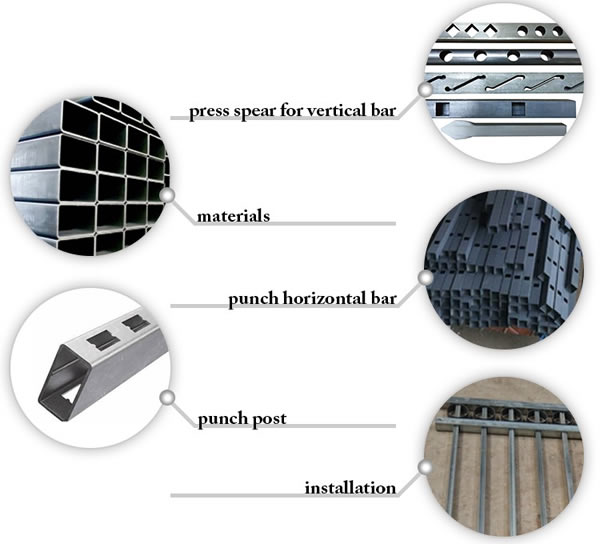

Tubular Picket Railing System Processing Technology

Process: Galvanized pipe cutting; spear pressing; tube hole punching (punching holes for vertical bar; punching of horizontal bar; punching holes of post); welding; washing; surface treatment; packing; installation.

1. First cut the steel or aluminum tube into the required length
2. Press spear tops
3, Punching holes of steel tubes
4. Use the mould to fix the cut tube then weld the rail and pickets. there are two welding methods:

  •  A. full welding
  •  B.point welding

5. Washing / Surface Cleaning: The workers first use the small polish machine to polish the welding points one by one. After finished all the  welding,using the big polish machine (steel sand ) to wash the oil.

6. Surface Treatment: Then finish the zinc plating. The last surface treatment can be hot dip zinc plating or zinc plating plus power coating.




Typical Horizontal Bar, Vertical Bar and Installation Information

Installation

height

(mm)

Post spacing (mm)

panel

post

Plate dimension (mm)

Horizontal bar  quantity

Horizontal bar profile dimension       (mm)

Vertical bar profile dimension (mm)

Length (mm)

Dia O.D (mm)

1600

3000

2980*1500

3

40x60x1.5

25x25x1.2

1900

80x80x2

1900

3000

2980*1800

3

40x60x1.5

25x25x1.2

2200

80x80x2

2300

3000

2980*2200

3

40x60x1.5

25x25x1.2

2600

80x80x2

Applications

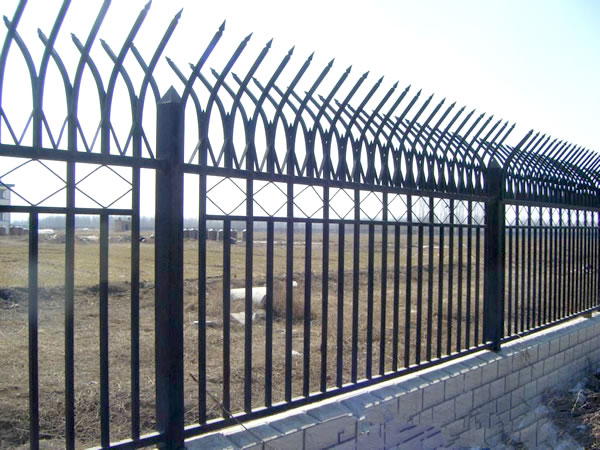

Security Fencing with Ornamental Effects:
The right combination of fence height, picket spacing, fence style, and material components can meet varied fencing needs of our customers.

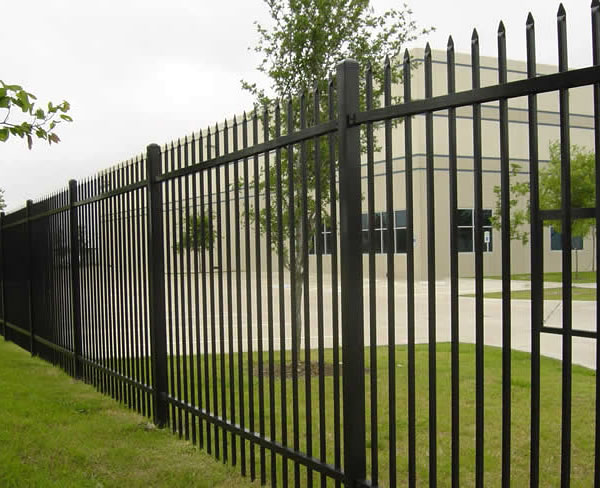

Tubular Fence RailingsSpear Top Galvanized Steel Picket Fence for Villa Perimeter

Material: Hot-dipped Galvanized Steel tube.

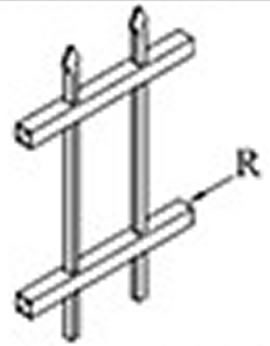

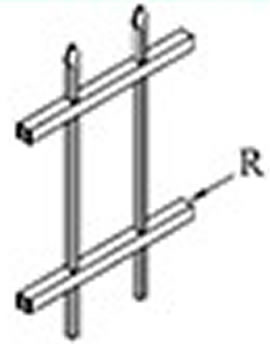

Tubular security fence panel specification:

Rail(mm) Picket(mm) Center space(mm) Post(mm)
32*32*1.2
40*40*1.2
45*45*1.2
32*32*1.0
40*40*1.0
45*45*1.0
16*16*1.0
19*19*1.0
25*25*1.0
16*16*0.8
19*19*0.8
25*25*0.8

116
124
130
116
124
130

50*50*1.5

60*60*2.0

80*80*2.0

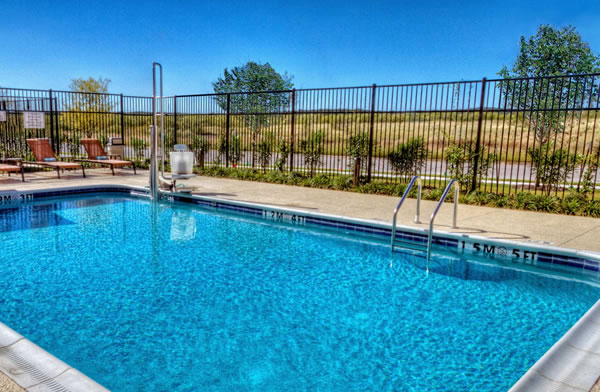

Swimming Pool Fence Panels Flat Rail Top Steel Section Picket Fence for Swiming Pool Security: Materials: Prime steel, also aluminum and alloy. Surface treatment can be hot dipped zinc plating, plastic spray coating and plastic/epoxy/polyester coating.

Powder Coated Picket FencePowder Coated Security Squash Top Steel Fencing for residences backyards, constructed with 25 x 25mm square galvanised steel tube pickets with a pressed spear top. The steel pickets are inserted through laser cut holes in the 40x40mm square galvanised steel tube cross rails.

Zinc Coated Perimeter FenceBlack Powder Coated Galvanized Steel Bar Fencing for Farm Bounderies

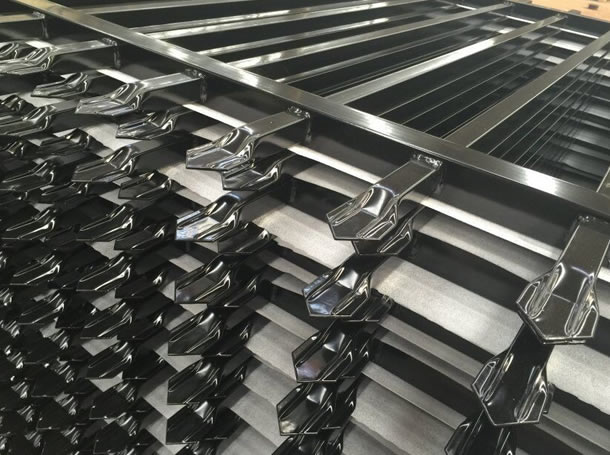

Tubular railing system hot galvanized, Australia tubular steel panel fence

Black Powder Coated Metal Steel Picket Railings

Material Galvanized Steel Tube
Surface treatment Galvanized or powder coating
Infill square pipe 20x20,25X25mm;40X40mm,45X45mm
Feature Easily Assembled
Usage Garden, School, Residential, Swimming Pool
Color Blue, Green, Black, White while black is popular
Square pipe post 60x60mm,80x80mm
