Wire Mesh Fence For Airport

Airport Fence is also known as Y-Shape Security Fence. It is strengthened by the v-shaped support arm and welded mesh panel or chain link fence, security fittings and hot-dip galvanized concertina razor mesh to form a high level of strength and security.

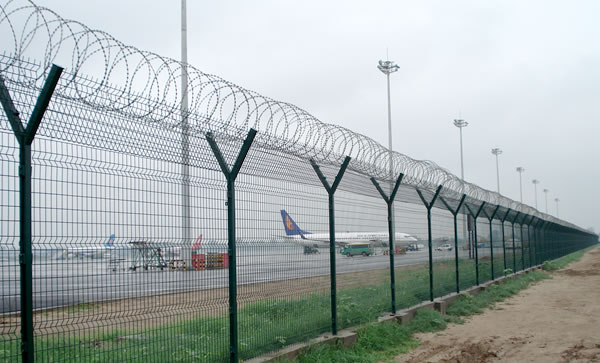

Y Shape Airport Fence

Airport fence is generally Y-shaped Post , fixed with razor mesh on top, which greatly increases the security performance. It is widely used in airports, military bases and other high security sites.

Galvanized and Powder caoted security Airport Fence

Airport fence Constituent part:
Large Panel,V panel,razor wire,post and accessories.
Total Height:2.9m Width:2.5m
Large Panel:22030mm wire diameter:4.5mm 4curves
V panel:530mm wire diameter:4.5mm 2curves.
Razor wire:BTO-22 outside diameter:500mm
Y Post:2900+530mm  60x60x2.0mm

For Panel

Height 2.03m, 2.33m, 2.63m.
Width 2.0m, 2.5m.
Wire thickness 4.0mm, 4.5mm, 5.0mm
Spacing between horizontal wire 100mm, 150mm.
Spacing between vertical wire 50mm, 55mm.
Reforced folds 100mm.
Finishing Glavnized and electrostatic polyester powder coating

For post

post Square post
Size 60mmx60mm
Thickness 2.0mm, 2.5mm, 3.0mm
Height 3.2m, 3.7, 4.3m
Finishing Glavnized and electrostatic polyester powder coating

For Concertina razor wire

Type BTO-22
Core wire 2.5mm
Blade 0.5mm
Roll diameter 500mm, 600mm, 700mm
Finishing Hot dipped galvanized

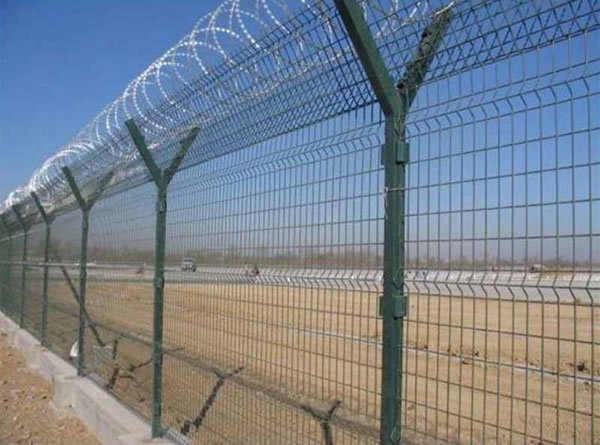

2.9m high Galvanized and Powder caoted security Airport Fence

This airport fence is welded wire mesh fence panel with razor wire, airports and aviation buildings are sensitive areas that require perimeter fencing solutions that stand up to the high risk levels.

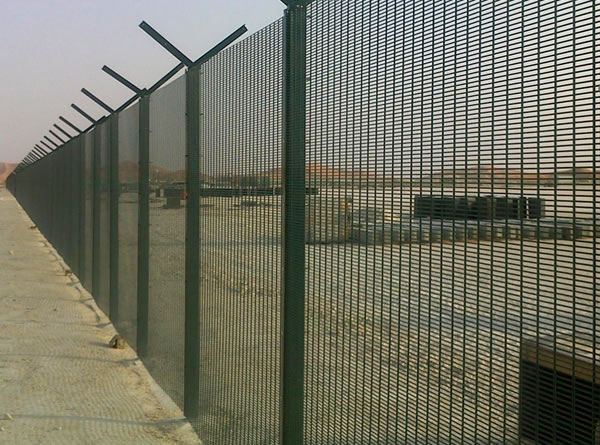

Galvanized Or PVC Coated 358 Steel Fence Airport Security Fence

358 Mesh Fence System is a kind of tall, welded wire mesh with protective spiked wire on the upper part. The wire is galvanized steel wire and pvc plastic coating. It protects the beauty while ensuring the maximum degree of sturdiness and durability.

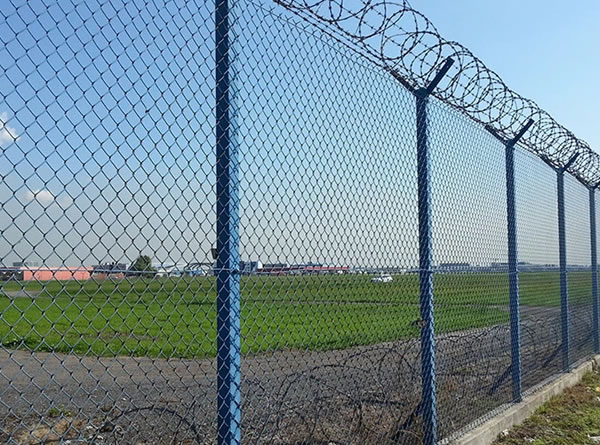

Chain Link Airport Fences with Razor Wire

This chain link fence made from galvanized or PVC coated iron wire, to fix with posts, fittings and brace if needed

Chain Link Mesh Airport Fence
Mesh Wire Diameter Width Length
40*40 mm 1.8 - 3.0 mm 0.5 - 4.0m 5 - 25 m
50*50 mm 1.8 - 3.5 mm 0.5 - 4.0m 5 - 25 m
60*60 mm 1.8 - 4.0 mm 0.5 - 4.0m 5 - 25 m
80*80 mm 2.5 - 4.0 mm 0.5 - 4.0m 5 - 25 m
100*100 mm 2.5 - 4.0 mm 0.5 - 4.0m 5 - 25 m
