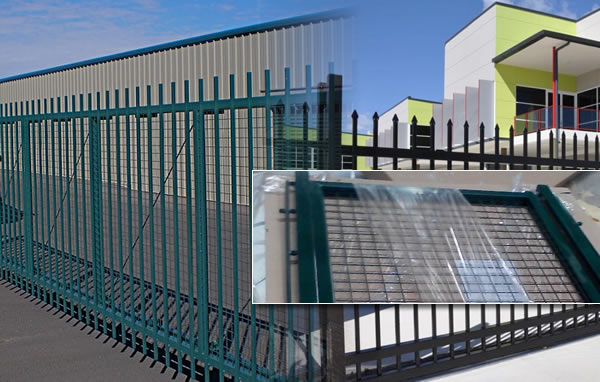

High Security Sliding Gate for Uptown
Popular Specification of Silding Main Gate
Height of gate(m) | 1.4m, 1.5m, 1.8m, 2.0m, 2.2m | ||
Width of gate(m) | 3m, 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m | ||
Gateframe surface(mm) | 80*60, 110*90, 80*80, 100*100, 120*120 | ||
The Gate Railing Panels | Square Tube: 30*30mm, 35*35mm, 40*40mm | ||
Round Tube: Ø30, Ø35, Ø40 | |||
Underframe(mm) | 100*150, 220*220, 350*220 | ||
colour | RAL256 Colours |

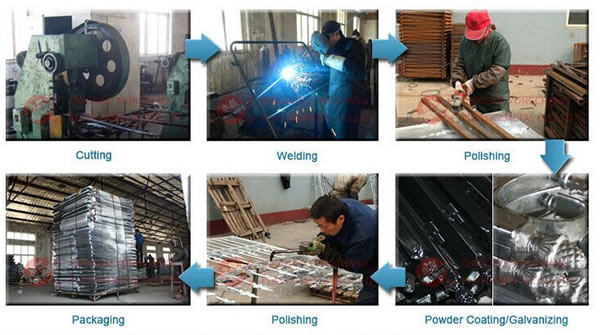

Production Processes
Production of metal fencing gates includes: Cutting, welding, polishing, galvanizing / powder coating, polishing and packing.
Advantages of Sliding Metal Gate:
The gate panels are safe, strong and refined;
It takes less space;
The gate can be used perfectly together with metal fences;
Convenient for uses;
Sliding gate will not destroy the path ground badly.

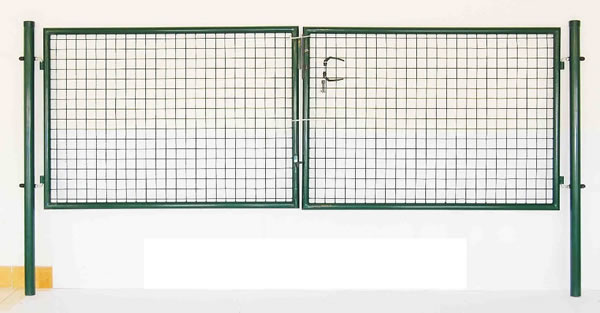

Garden Fence Gate Material:
High Quality low carbon Iron tubes, steel tubes, and low carbon steel wire,galvanized wire
Coating Colors:
Green, yellow, white, etc. Dark Green RAL6005 is most popualr
Metal Fence Gate Specifications:
Gate Frame:
The type of the vertical -hinged door: Single leaf, double leaf
Height of the gate (m):1.0,1.2,1.5,1.8,2m
Width of the gate(m):Single leaf :1,1.2,1.5m; Double leaf :2,3,4,5,6,8m
Gate frame: Square tubes: 35x35mm,40x40mm,50x50mm, 60x60mm, 40x60mm
Surface treatment: Galvanized Steel pipe+Powder Coated
Color: RAL 6009 colors
Gate Panels:
Wire diameter | 3.8mm, 4mm, 4.8mm, 5mm, 6mm |
mesh | 50*100mm, 50*150mm, 50*200mm |
height | 1.5m, 2.2m, 2.4m, |
post | 40*60*1.5mm,60*60*2mm |
Surface treatment | Galvanzied then Powder coated, hot-dipped |
